ARCC Lights



What are the ARCC Lights?

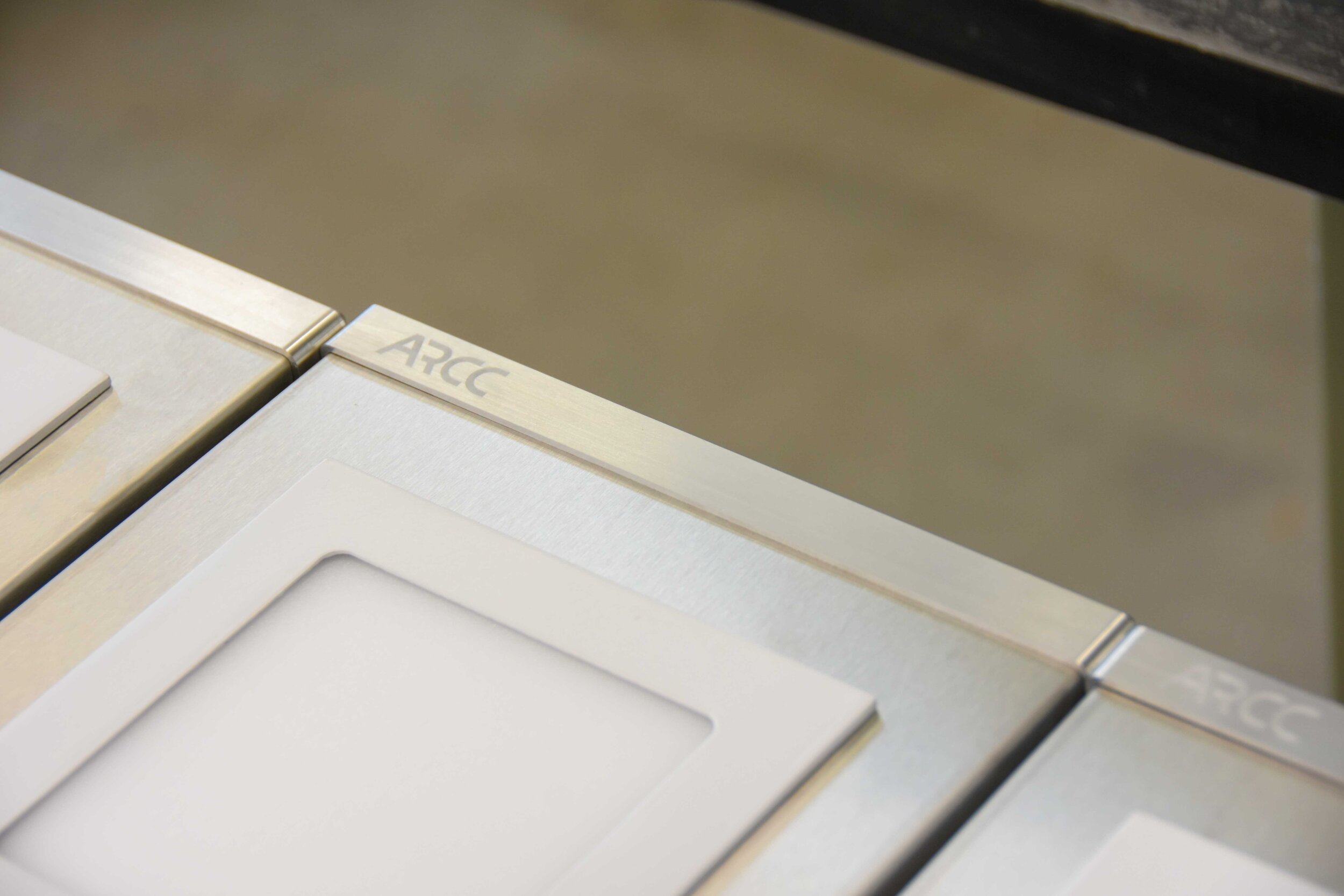

The ARCC Lights are a series of customisable LED panel lights which are meticulously-crafted to meet your lighting requirements.

Versatile and applicable in almost any commercial and industrial interior, the ARCC Lights are assembled from durable and high-grade materials, improving safety, energy savings and productivity.

Made of 304 stainless steel, the ARCC Lights’ casing is available in lengths of 1.2m (4 foot) or 1.8m (6 foot) and in heights of 50mm or 76mm (the casing can also be upgraded to 316 stainless steel for superior corrosion resistance.) The ribbed endcaps are made of machined aluminium.

The ARCC Lights can be paired with a variety of aperture configurations, housing either 6W or 9W LEDs with a choice of Warm White (3500k) or Day White (6000k) colours. The ARCC Lights can be surface-mounted or suspended from the ceiling via chain/wire supports. Optional emergency lights can also be installed, with a battery life of 3 hours.

Undergoing a rigorous quality standards procedure, the ARCC Lights are assembled here at ARCC Innovations in Cambridge and come complete with a one year warranty.

ARCC Light Installation Guide [PDF]

Important Information:

These instructions contain safety information, read, and follow them carefully. We will not accept any responsibility for injury, damage or loss which may occur due to incorrect installation, operation, or maintenance.

Warning:

To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and maintained by a qualified electrician only, in accordance with all applicable electrical codes.

ARCC Lights Specification:

  • Material: 304/316 Stainless Steel casing, 5083 Aluminium endcaps, Acrylic.

  • Sizes and Panel Apertures:

    • 1.2m x 200mm wide x 76mm high

      • 3x9W + 2x6W LED

      • 3x9W + 2x6W LED (+emergency lights)

    • 1.2m x 200mm wide x 50mm high

      • 3x9W + 2x6W LED

      • 3x9W + 2x6W LED (+emergency lights)

    • 1.8m x 200mm wide x 76mm high

      • 5x9W LED

      • 3x9W LED (+emergency lights)

    • 1.8m x 200mm wide x 50mm high

      • 5x9W LED

      • 3x9W LED (+emergency lights)

  • Colour:

    • Warm White (3500K)

    • Day White (6000K)

  • Mounts:

    • Surface

    • Wire

    • Chain

  • LED Specification

    • Dimension

      • 6W: 120mm x 120mm wide x 22mm high

      • 9W: 150mm x 150mm wide x 22mm high

    • Beam Angle: 120 Degrees

    • Input Voltage: 240V

    • IP Rating: IP44

    • Lumens:

    • Lifespan: 50000 hours

    • Certifications: CE & RoHS

  • Assembled in Cambridge
